Bingyan PIR Cold Storage Panels

High-Efficiency Thermal Insulation Solution for Professional Cold Storage

Our PIR (Polyisocyanurate) cold storage panels are high-performance thermal insulation sandwich panels specially designed for commercial and industrial cold storage applications. Adopting a metal panel + PIR core + metal panel sandwich structure, they are molded via the pentane foaming process based on high-quality polyurethane raw materials from Yantai Wanhua. These panels lead the industry in thermal insulation, fire resistance, moistureproofing, and structural strength.

Inquiry

Write a Review

Technical Parameters

Item	Specifications	Executive Standard
Thickness (mm)	250/200/180/150/120/100/75/50	GB50072-2021 Code for Design of Cold Storage
Width (mm)	1120	JB/T 6527-2006 Insulated Sandwich Panels for Assembled Cold Storage
Core Material	Polyisocyanurate (PIR)	—
Core Density (kg/m³)	40 ± 2	GB/T6343-2009
Thermal Conductivity (W/m·k)	≤ 0.024	GB/T3399-1982(1989)
Oxygen Index (%)	≥ 30	GB/T 2406.2-2009
Dimensional Stability	< 3% (70 ℃, 48h)	GB/T 8810-2005
Bonding Strength	≥ 1.0kg/cm² (0.1MPa); Bonding area of peeling surface ≥ 90%	JB/T 6527-2006
Bending Performance	Simply supported sandwich panel, uniformly distributed load of 0.5KN/m², relative midspan deflection L/250	JB/T 6527-2006
Compressive Strength (MPa)	≥ 0.15	GB/T 13840-2014
Water Absorption (%)	≤ 4	GB/T8810-2005
Closed-Cell Rate (%)	≥ 95	GB/T10799-2008
Fire Performance	B1 Grade	GB 8624-2012
Foaming Process	Pentane Foaming	—
HS Code	7610900000	—
Place of Origin	China	—
Packaging	Standard Export Packaging	—

Product Overview

Core Thermal Insulation Performance

The PIR core features an ultra-low thermal conductivity of ≤0.024W/m·k and a closed-cell rate of ≥95%, effectively blocking heat and cold transfer and significantly reducing the refrigeration energy consumption of cold storage. It provides a stable low-temperature environment for the food, pharmaceutical, cold chain logistics and other industries.

Safety Protection Grade

The product achieves the GB B1 grade flame-retardant standard with an oxygen index of ≥30%. It only carbonizes without dripping when exposed to fire. Combined with waterproof and anti-corrosion design, it can adapt to harsh working conditions such as humidity, low temperature and high salt spray, greatly improving the overall safety level of cold storage.

Construction & Operation Advantages

Standardized panels with a width of 1120mm matched with special connectors enable rapid modular assembly, allowing the construction of the enclosure structure for a 100㎡ cold storage within 2 hours. The fully automatic production line ensures product consistency with a service life of 15-20 years, significantly reducing later maintenance costs.

Environmental Protection & Compliance

The pentane foaming technology with low global warming potential is adopted, in line with the international environmental protection trend. Meanwhile, all performance indicators meet national and industrial standards such as GB50072-2021 and JB/T 6527-2006, making the panels directly applicable to export and various high-end cold chain projects.

Product Overview

Horizontal & Vertical Installation Steps

• Conduct base treatment with waterproof membrane and SBS cushion layer

• Fix galvanized L-shaped or U-shaped positioning parts with expansion bolts

• Lay the sealant base

• Pre-install panel joint sealant (double-sided groove sealant + middle polyurethane spraying)

• Install vertical wall panels

• Install wall purlins, C-section steel and quick mushroom head rivets when the length exceeds 6 meters

Ceiling Panel Installation Method

• Determine the length and hoisting direction of ceiling panels according to the main building girders (ceiling panel joints are parallel to the main building girders)

• Pre-install hanging beam structural parts: 6# channel steel and fixed hanging beams, connected to C-shaped keels with M12 hanging screws

• Hoist the thermal insulation ceiling panels

• Adjust the length of hanging screws

• Spray polyurethane foam at the main joints, use PVC casing for foaming to break the cold bridge, and trim the color steel flanging parts

Core Features

Feature	Details
Rapid Installation	Universal panels and aluminum accessories enable the construction of a 100㎡ prefabricated building within 2 hours
Durability & Long Service Life	Fully automatic production line ensures high quality and corrosion resistance, with a service life of 15-20 years
Mass Production	Production of 1000㎡ panels for conventional specifications can be completed in 2-5 days
Sound Absorption & Noise Reduction	50mm thick PU panels can absorb more than 30 dB/m² of noise
Fire Safety	Complies with the national fire protection grade standard of GB8624
Waterproof & Moistureproof	Cam lock structure maintains shape and performance even after being immersed in water for several days

Product Actual Shooting

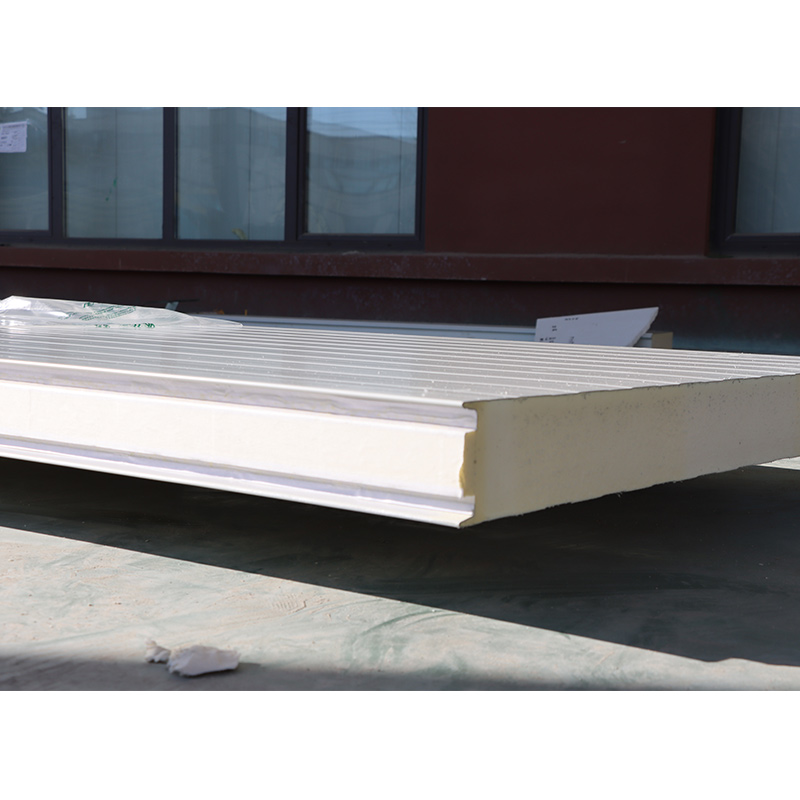

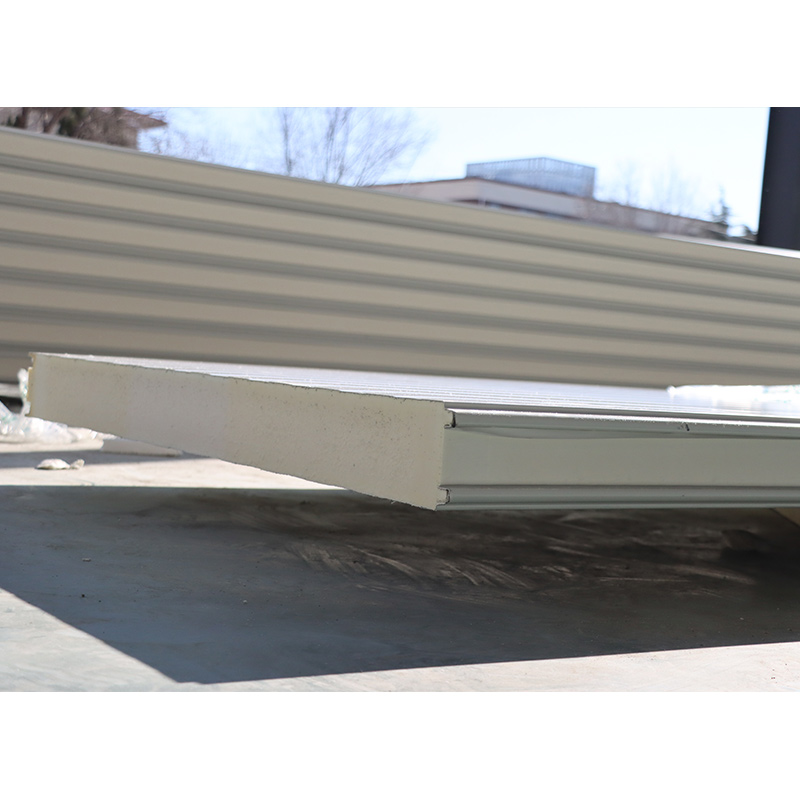

• Panel Structure: Clearly display the sandwich structure of PIR core and metal panels

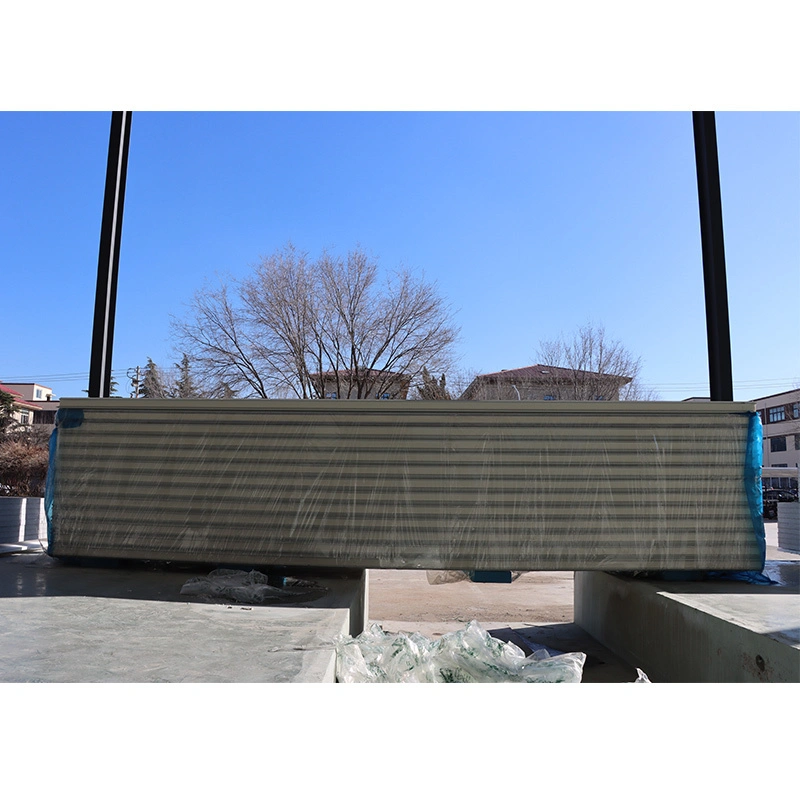

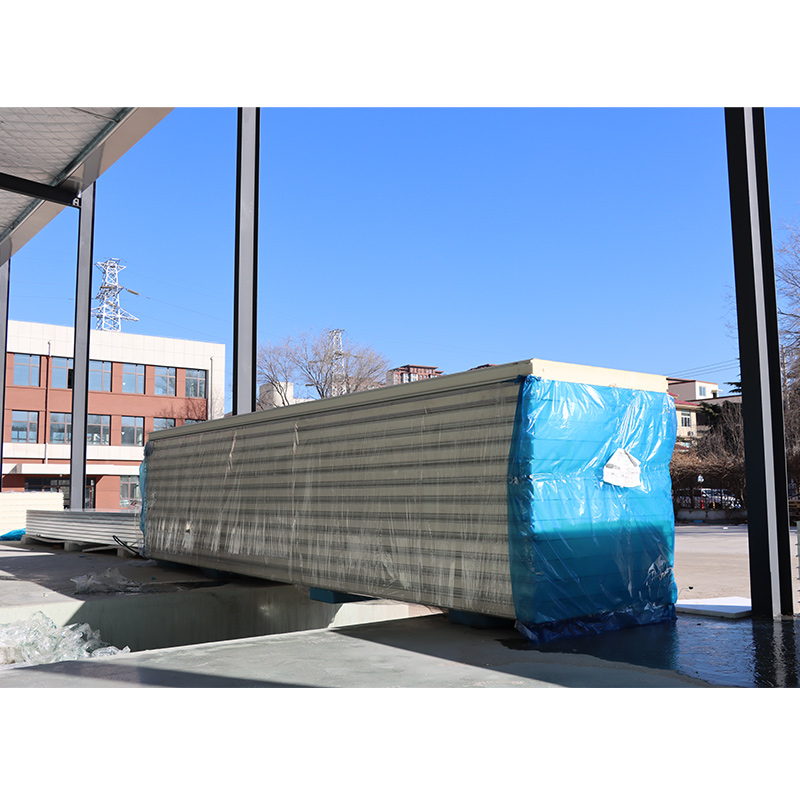

• Finished Product Stacking: Standardized packaging for easy transportation and storage

• Connecting Accessories: Special metal connectors to ensure firm installation

• Fire Test: B1 grade flame-retardant performance, only carbonizes without dripping after combustion

Application Scope

Food freezing and refrigeration storage, Pharmaceutical cold chain warehousing, Cold chain logistics centers, Industrial low-temperature workshops,

Prefabricated cold chain buildings

Food processing and freezing (quick-freezing of meat, seafood, fruits and vegetables)

Cold chain logistics cold storage and distribution centers
