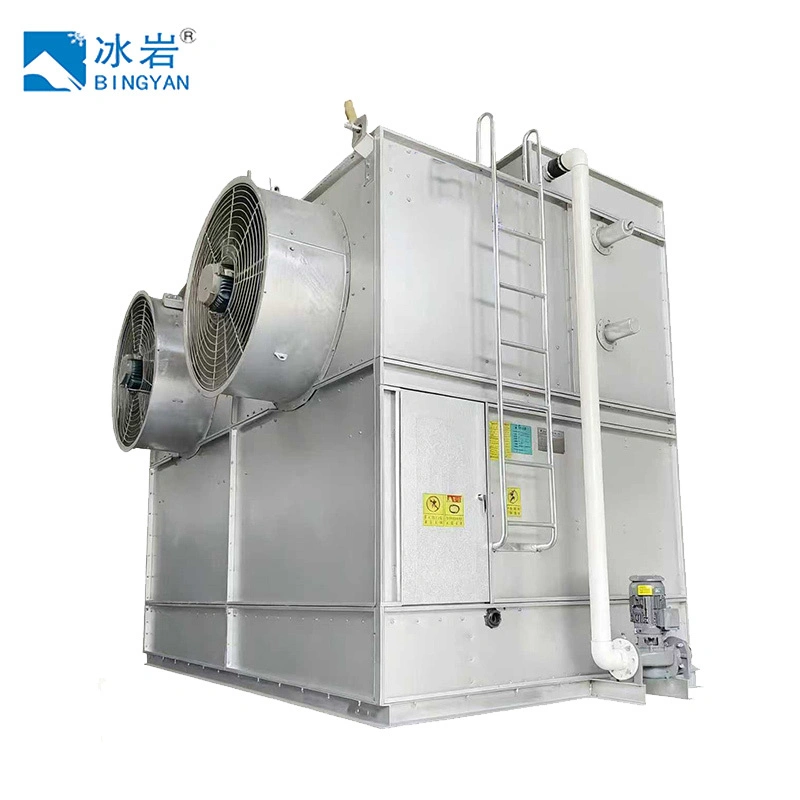

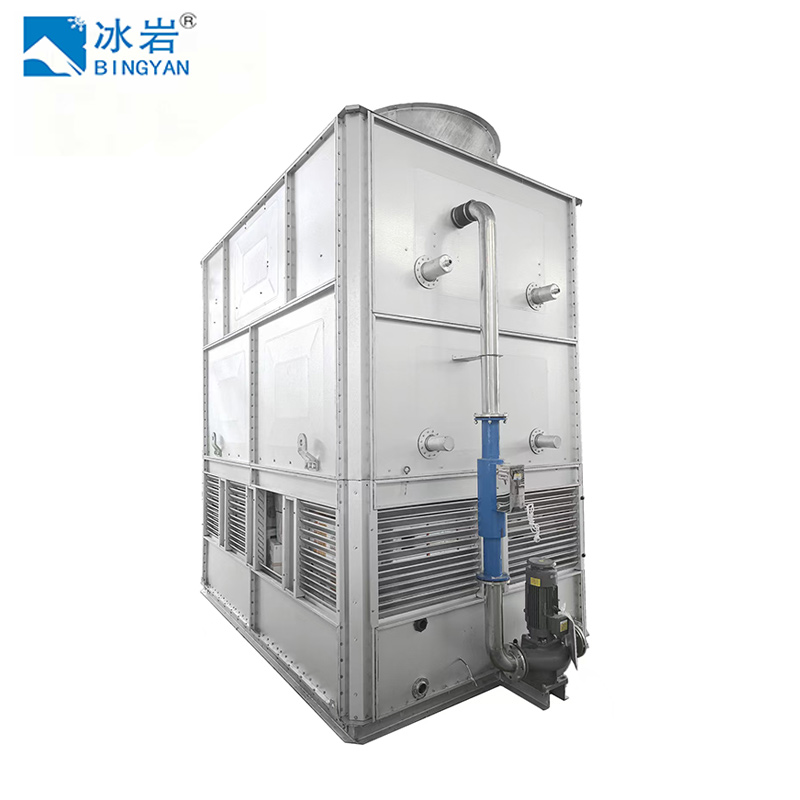

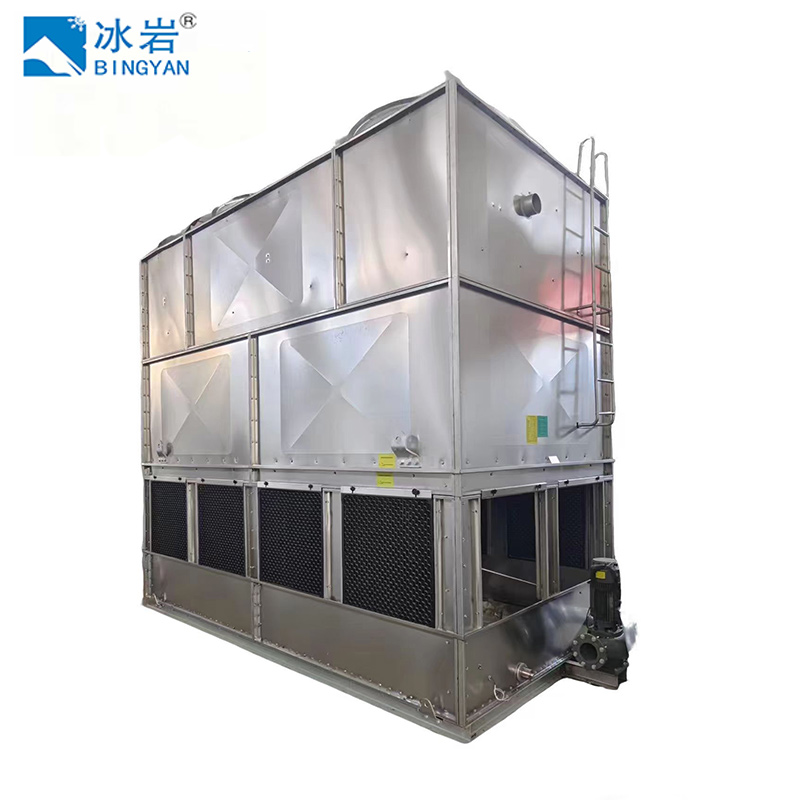

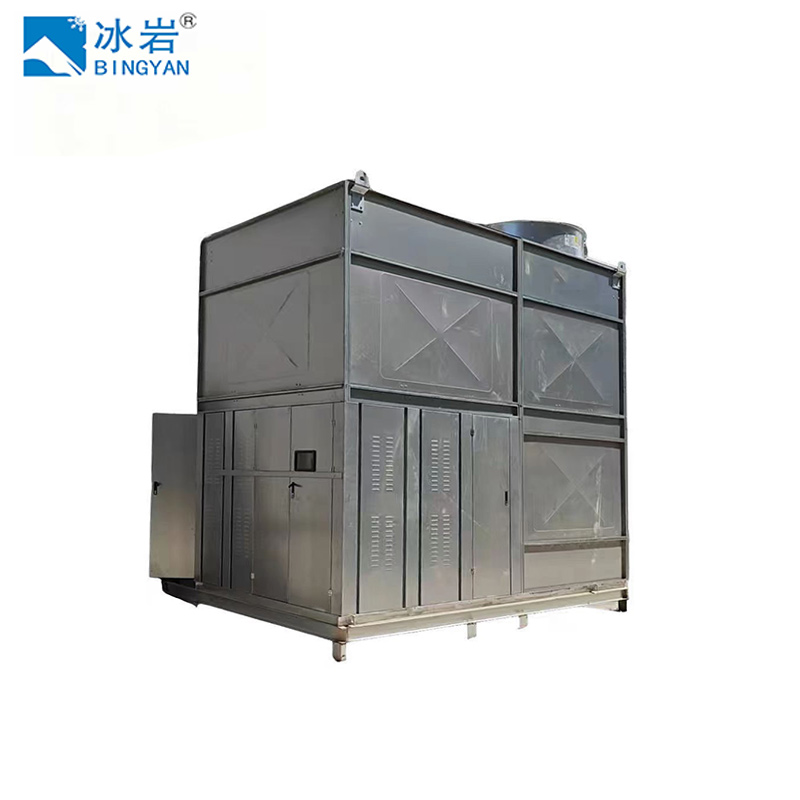

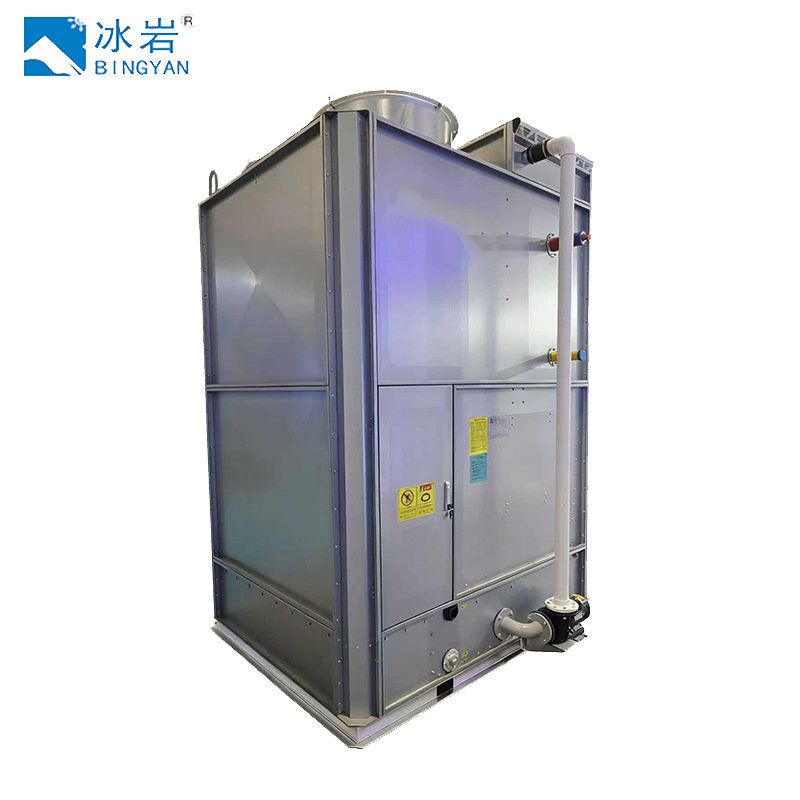

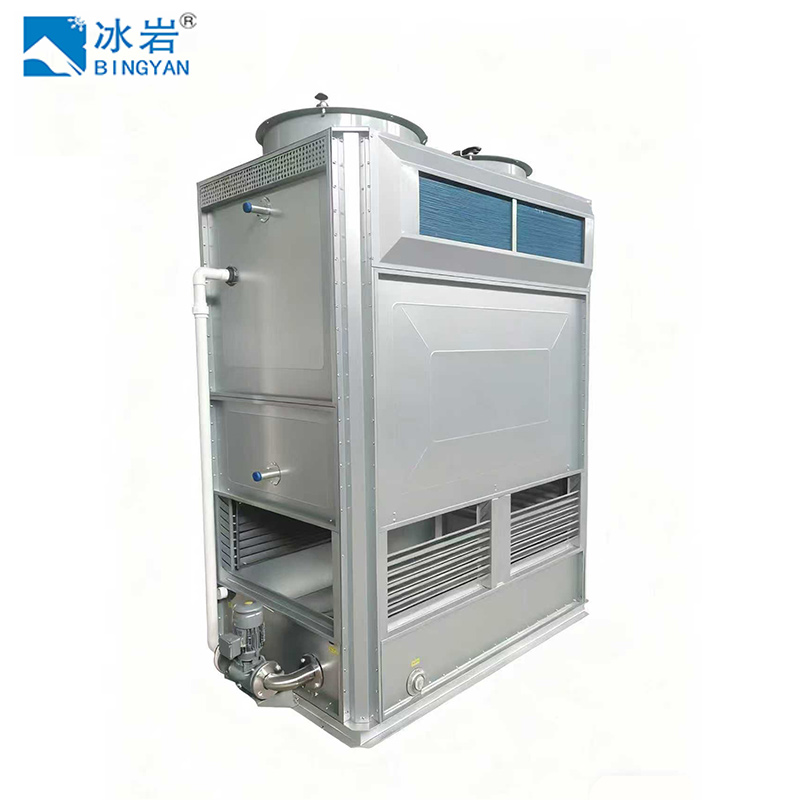

Evaporative Condenser

The evaporative condenser is a core high-efficiency heat exchange device in modern refrigeration and industrial cooling systems. It ingeniously combines the dual advantages of the latent heat of water evaporation and air convection heat exchange. By the rapid evaporation of the water film sprayed on the outer surface of the heat exchange coil, it efficiently absorbs the heat released by the high-temperature refrigerant or process fluid inside the tube, thereby realizing the condensation and cooling of the medium.

Inquiry

Write a Review

Product Overview

Compared with traditional air-cooled or water-cooled condensers, this product adopts a composite heat exchange mechanism of water film evaporation + air convection, which greatly improves the heat exchange efficiency and significantly reduces system energy consumption and operating costs. Its compact modular design not only reduces the floor area but also lowers the refrigerant charge and air flow resistance through innovative structures such as elliptical heat exchange tubes, achieving the dual goals of energy saving and environmental protection.

This series of products is tailor-made for scenarios such as freezing and refrigeration, food preservation, chemical and pharmaceutical production, and industrial refrigeration, and can be widely applied to core links including cold storage, cold chain logistics, food processing, and cooling of chemical reaction kettles. Whether in large overseas cold storage projects such as those in Algeria or domestic industrial production lines, it can provide customers with efficient and sustainable condensation solutions by virtue of its stable and reliable performance and low-noise, environment-friendly operation characteristics, helping enterprises achieve green and low-carbon production transformation.

Working Principle

The working process of the evaporative condenser is a coordinated system integrating air flow, water circulation and phase-change heat exchange,which can be divided into the following three core stages:

Heat and mass exchange stage of air and water

Dry and low-temperature ambient air is forcibly drawn in by the fan from the air inlet at the bottom of the equipment and passes through the heat exchange coil group from bottom to top. At the same time, the circulating water sprayed from the upper part forms a uniform water film on the outer surface of the coils. The air is in full contact with the water film during the rising process, and the water in the water film evaporates rapidly, absorbing a large amount of latent heat of vaporization, which increases the air temperature and humidity. Finally, the air becomes hot and humid air and is discharged from the air outlet at the top of the equipment. This process is the core power source for the equipment to achieve high-efficiency cooling.

Condensation stage of medium inside the tube

The high-temperature and high-pressure gaseous refrigerant (or other process fluids) discharged from the refrigeration compressor enters from the upper inlet of the coil group and flows back and forth multiple times inside the coils. At this time, the water film on the outer surface of the coils is continuously evaporating and absorbing heat, making the wall temperature of the coils much lower than the saturation temperature of the medium inside the tube. The medium inside the tube conducts high-efficiency heat exchange with the water film through the tube wall, releasing a large amount of heat, and its temperature drops sharply, condensing from gaseous state to liquid state. Finally, it is discharged from the lower outlet of the coil group, completing the condensation process.

Water circulation and reuse stage

The water collection tank at the bottom of the equipment stores circulating water, which is delivered to the spray pipe group at the top by a water pump. The high-flow nozzles on the spray pipes spray water evenly on the outer surface of the coil group to form a continuous water film. After completing the heat exchange, most of the water falls back to the water collection tank under the action of gravity and participates in the circulation again. Only a small amount of water evaporates when in contact with air and is discharged from the equipment along with the hot and humid air. The lost water is timely supplemented by the automatic water supply system to maintain the stable operation of the system.

Core Parameters

Item	Details
Model	BY-ZFSLNQ Series
Material	Aluzinc-coated sheet, Stainless steel
Heat Exchange Mode	Partition wall type heat exchange
Application Field	Freezing and refrigeration
Equipment Status	Brand new
Installation Mode	Fixed type
Specification	Suitable for container transportation
HS Code	8418999990
Type	Steam condenser
Structural Form	Vertical type
Structure	Fixed tube-sheet type
Certification	ISO
Application Scenario	Freezing and refrigeration, Food preservation
Transport Packaging	Container
Place of Origin	China

Product Advantages

• High efficiency and energy saving

Adopt unique structural design and high heat exchange performance, with low condensation temperature, water saving in operation and significant reduction in energy consumption.

• Compact design

Elliptical tubes are used as heat exchange tubes, which reduce refrigerant charge, feature a more compact layout and lower the flow resistance of cooling air.

• Environmental protection and low noise

Low operating noise and no environmental pollution, making it a genuine energy-saving and environment-friendly product.

• Easy transportation and installation

Adopt split transportation, and standard components are transported to the site for assembly from the upper and lower boxes, greatly reducing the difficulty of transportation and installation.

• Stability and reliability

Stainless steel material is corrosion-resistant, and the ISO-certified quality ensures long-term stable operation.

Product display

1 (117)

2 (40)

3 (32)

4 (34)

5 (31)

6 (26)

7 (24)

8 (18)

9 (14)

10 (11)

11 (9)

12 (9)

Application Scenarios

• Food processing and cold chain

Used in the freezing, refrigeration and preservation of meat, aquatic products, dairy products and other foods.

• Chemical and pharmaceutical industry

Provide high-efficiency cooling for the condensation links in chemical reactions and pharmaceutical processes.

• Industrial refrigeration

Matched with large-scale refrigeration units to provide stable condensation support for industrial production.

Frequently Asked Questions

Why Choose Us?

• 20 years of in-depth development, a specialist in customized cold storage systems
• Thousands of cold storage cases, strength builds trust
• Supported by a professional team with a sound qualification system
• One-stop full-chain service for worry-free experience
• Customized design for precise matching of needs
• Supply of core equipment with stable, energy-saving and high-efficiency performance
• Empowered by AI intelligence, leading the new trend of energy conservation
• Full-cycle after-sales guarantee for long-term stable operation

Technical Support and Services

• Customized design

Provide personalized product design and selection schemes according to customers' specific working conditions and needs.

• Professional installation guidance

Provide detailed installation manuals and on-site technical support to ensure the correct installation of equipment.

• Full life cycle service

Provide regular maintenance, fault diagnosis and spare parts supply to ensure the long-term and high-efficiency operation of equipment.
