Electric Heater, Air Conditioner Cooler

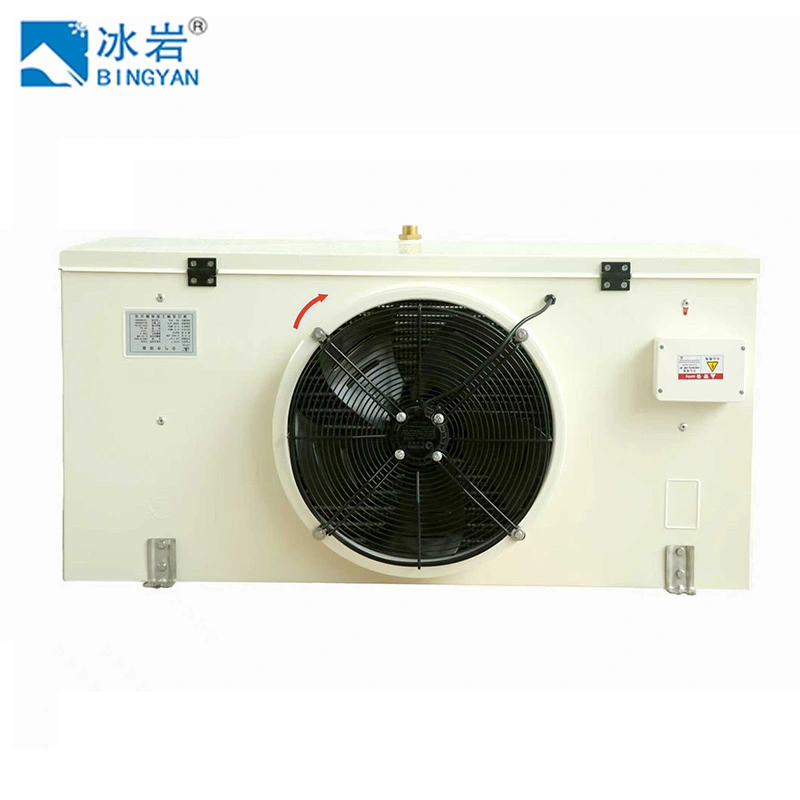

• Product Name: Air Cooler for Refrigeration Condensing Unit and Cold Storage (Cold Storage Evaporator)
• Model Series: BY-GXFJ Series
• Place of Origin: Qingdao, China
• Certification: ISO Certified, accessories comply with UL standards
• Voltage: 380V/3p/50Hz
• Cooling Capacity: 2KW – 150KW (Customize)
• Defrost Type: Electric heater
• Refrigerant: Compatible with R404A, R507A, R134a, R22, R717, etc.
• Structural Form: Assembled, customize in size and specification
• Applicable Scenarios: Freezing and refrigeration scenarios such as food, blood, pharmaceutical and industrial cold storage

Inquiry

Write a Review

Basic Product Parameter Table

Item	Parameter
Refrigerant	Compatible with R404A, R507A, R134a, R22, R717, etc.
Structure	Assembled
Applicable Scenarios	Factories, food and beverage factories, pharmaceutical cold storage, etc.
Warranty Period	1 year after delivery
Equipment Condition	Brand new
Voltage	380V/3p/50Hz
Video Factory Inspection	Available
Color	White (Customize)
Applicable Industries	Cold chain logistics, food factories, restaurants, pharmaceuticals, etc.
Post-warranty Service	Online technical support, on-site maintenance
Type	Air conditioning and refrigeration equipment
Specification	Customize
HS Code	8479600000
Size	Customize
Usage Nature	Freezing and refrigeration storage
Purpose	Food, cold chain logistics, pharmaceuticals, etc.
Certification	ISO
Core Selling Points	Fully automatic operation, high efficiency and energy saving
Application	Industrial air cooler
Noise	Low noise
Transport Packaging	Wooden packaging
Fin Material	Copper, aluminum, stainless steel (Optional)
Shell material	304 stainless steel/spray coated galvanized steel sheet
Installation Method	Ceiling-mounted, floor-mounted

Core Structure and Technical Details

Factory Testing

All equipment is cleaned, inspected and undergoes a 25bar pressure holding test before delivery to ensure quality.

Electric Heater, Air Conditioner Cooler 5

Fin

Classic European sinusoidal corrugated aluminum fins enhance air disturbance and significantly improve air-side heat exchange capacity.

Fan

Customized high-power external rotor fan with an operating temperature range of -40℃~60℃ and F-class motor insulation, ensuring stable and reliable operation.

Electrical Junction Box

Specially customized waterproof, fireproof and high-voltage resistant junction box with convenient wiring and high safety and reliability.

Heat Exchange Pipe

Adopts high-efficiency internal thread pipes of well-known brands with optimized circuit design and equilateral triangle staggered arrangement, greatly improving heat exchange efficiency.

Electric Heater, Air Conditioner Cooler 9

Defrosting System

Electric heating defrosting: Stainless steel electric heating tube, with low power and low density, is reasonably arranged inside the coil and the water tray to ensure uniform heating, good defrosting effect, and extended service life of the heating tube.

Electric Heater, Air Conditioner Cooler 10

Shell

Adopts high-quality steel plate with low-temperature resistant powder coating, featuring strong corrosion resistance. Customize aluminum plate or stainless steel shell is available; all tube sheets are 2.0mm thick aluminum alloy plates, effectively reducing the risk of internal leakage.

Double-layer Water Tray

The outer water tray adopts a hinge lap joint design for easy maintenance; the rib slope design at the bottom accelerates drainage and prevents icing and corrosion. The inner water tray is covered with aluminum plate to reduce air bypass and improve fan efficiency and defrosting effect.

Temperature Range and Application Scenario Table

Series Model	Applicable Temperature	Main Purpose
DL Series	Around 0℃	Fresh-keeping and refrigeration of eggs, vegetables, etc.
DD Series	Around -18℃	Frozen storage of meat, fish, etc.
DJ Series	Around -25℃	Deep freezing of fresh meat, fish, etc.

Service and After-sales

• Warranty Period: 1-year warranty after delivery.

• Post-warranty Service: Provide online technical support and on-site maintenance.

• Installation Method: Support ceiling-mounted and floor-mounted installation.

• Packaging Method: Export-grade wooden packaging to ensure transportation safety.

• Video Factory Inspection: Provide pre-delivery video inspection service for full transparency.
