Yes. BingYan can design food-processing production lines according to the processing technology, production capacity, and plant layout, while integrating the required refrigeration systems into the overall workflow.

The solution can connect different temperature-control stages, from raw-material pre-cooling and processing to finished-product cold storage. By considering the production process and refrigeration requirements together, equipment layout, temperature control, material flow, and cold-storage capacity can be coordinated as part of one project rather than designed as isolated systems.

If you are planning a food-processing facility, we can assess the production process and refrigeration requirements together to develop an integrated solution.

For ultra-low-temperature applications, we prioritize refrigeration configurations that can maintain stable performance under extreme operating conditions. For suitable projects, a cascade refrigeration system can be adopted, consisting of separate high-temperature and low-temperature circuits connected through an intermediate cascade condenser-evaporator.

The high-temperature stage can use refrigerants such as R404A or R507, while the low-temperature stage may use media suitable for extreme-low-temperature operation, such as R23, CO₂, or ethane, depending on the project requirements. Separating the two stages reduces the compression ratio of each cycle and helps control discharge temperature, compressor load, and operational reliability.

High-efficiency oil separation and oil-return mechanisms are also incorporated to support stable operation at temperatures of −60°C or below. Such configurations can be considered for demanding applications including biomedicine and deep-sea sample storage.

For an ultra-low-temperature project, provide your target temperature, storage application, and capacity requirements, and we can evaluate the appropriate refrigeration configuration.

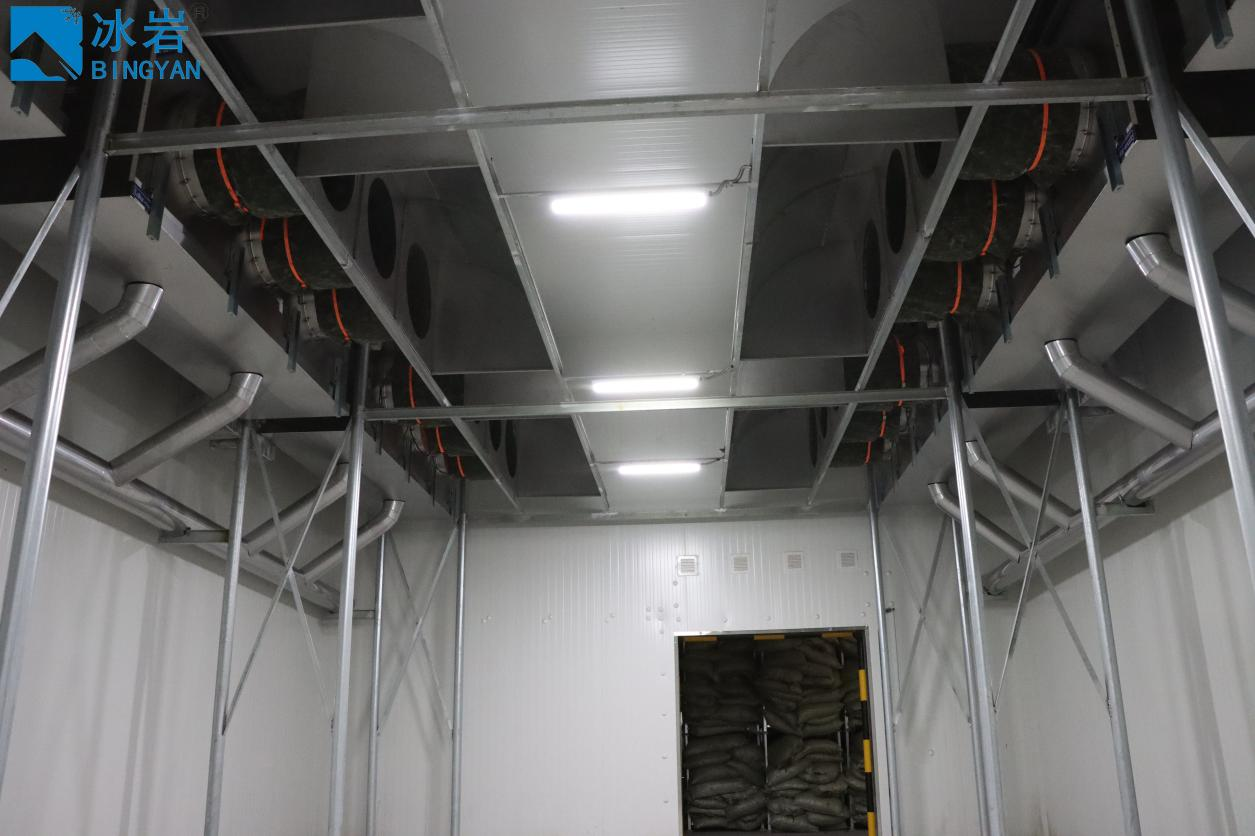

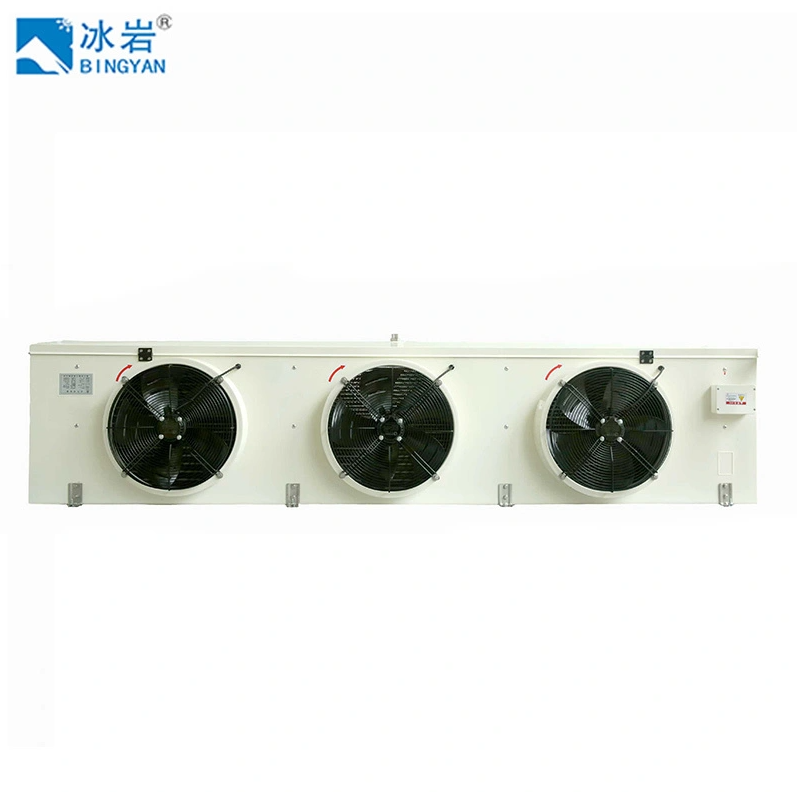

Fin spacing is selected based on the cold-room temperature, air humidity, frosting conditions, and the characteristics of incoming goods. For high-temperature fresh-keeping rooms, relatively narrow fin spacing can provide efficient heat exchange. Medium fin spacing is generally suitable for medium-temperature applications, while wider spacing is preferred for low-temperature frozen storage, rapid vegetable pre-cooling, and high-humidity processing environments.

Proper fin spacing helps reduce frost accumulation and blockage on the evaporator surface, maintain effective airflow and heat transfer, and reduce the frequency of defrosting. This allows the air cooler to maintain stable performance under different operating conditions.

Not sure which air cooler configuration fits your application? Share the target temperature and operating conditions with our team for a suitable fin-spacing recommendation.

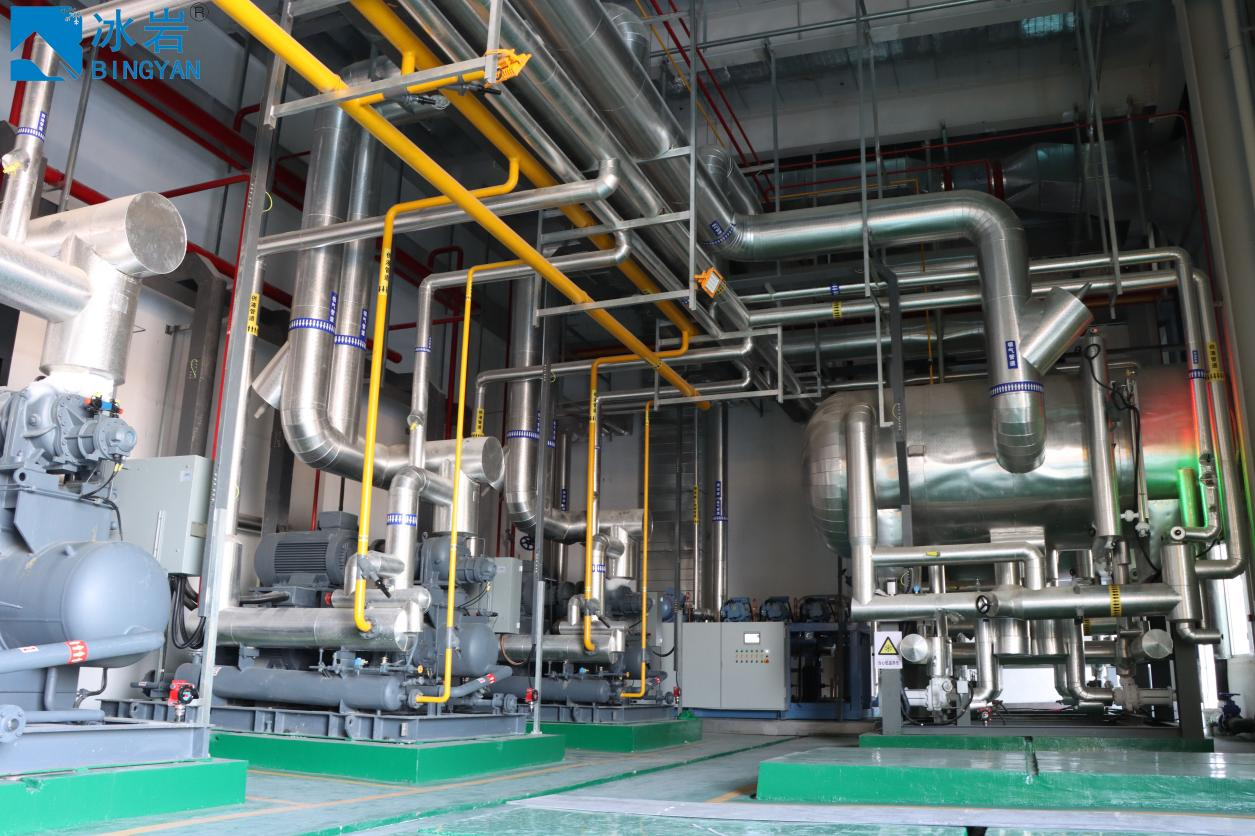

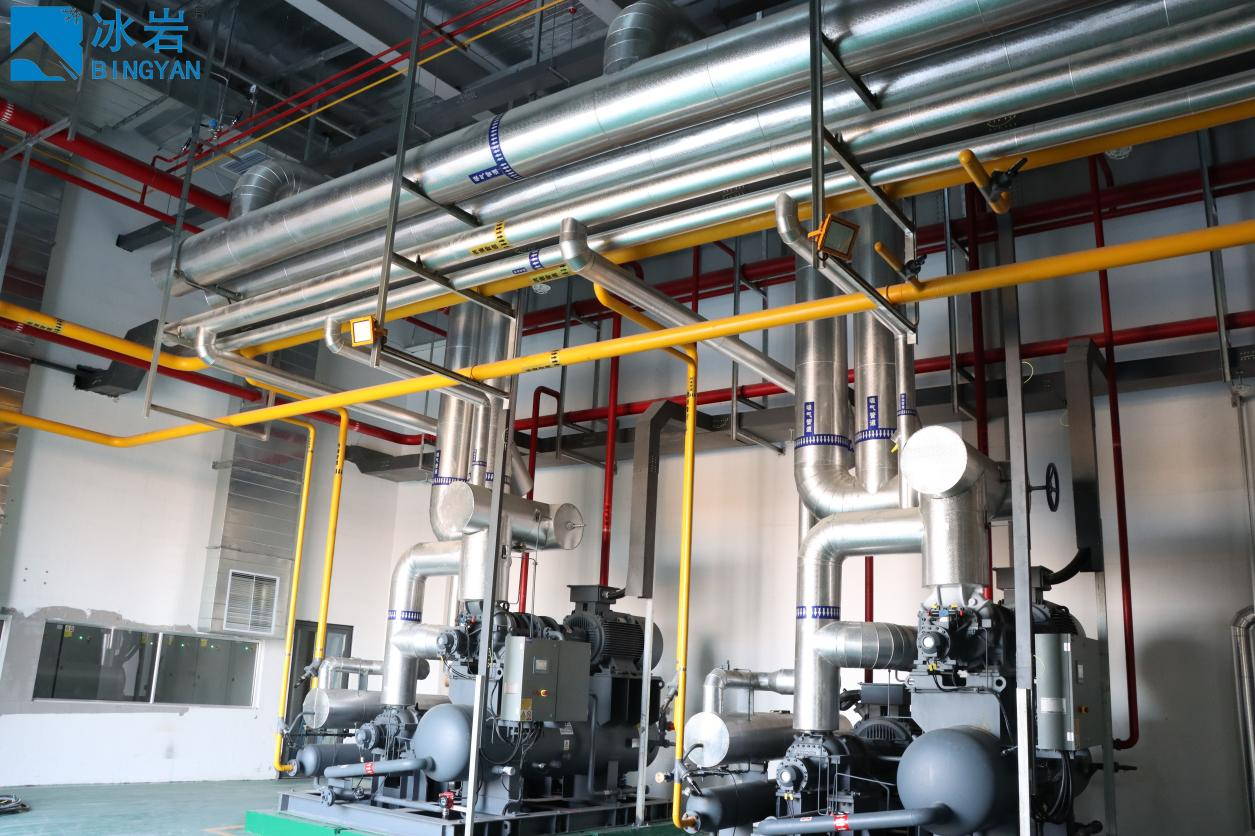

Refrigeration piping design directly affects system efficiency, reliability, and compressor operation. Our design considers factors such as pipe diameter, routing, pressure drop, slope, oil-return arrangements, vibration control, and overall system layout.

Proper pipe sizing and routing help minimize unnecessary flow resistance and support stable refrigerant circulation. An appropriate oil-return design helps maintain reliable compressor operation, while vibration damping can reduce mechanical stress and operating noise. By addressing these factors during the design stage, we can help reduce energy losses and operational risks such as poor oil return, liquid hammer, and excessive vibration over the system’s service life.

Have specific requirements for refrigeration piping or system performance? Contact BingYan to discuss your project conditions and develop an optimized piping design.

Yes. For applicable projects, we can reduce refrigerant charge through optimized system architecture and carefully designed refrigeration piping. The objective is to use refrigerant more efficiently while maintaining the required refrigeration performance.

A lower refrigerant charge can help reduce refrigerant procurement requirements and limit the amount of refrigerant involved in the event of a leak. It can also support safer system operation and easier refrigerant management. This approach can be particularly relevant to refrigeration projects using ammonia or Freon-based systems, where refrigerant management and system safety are important considerations.

Considering a low-charge refrigeration solution? Share your refrigerant type, temperature range, and project requirements with BingYan for a suitable system design.

BingYan refrigeration systems can incorporate hierarchical intelligent control for automated operation and system protection. Depending on the project configuration, functions can include automatic unit start/stop, cold-room temperature regulation, pressure protection, and intelligent defrosting.

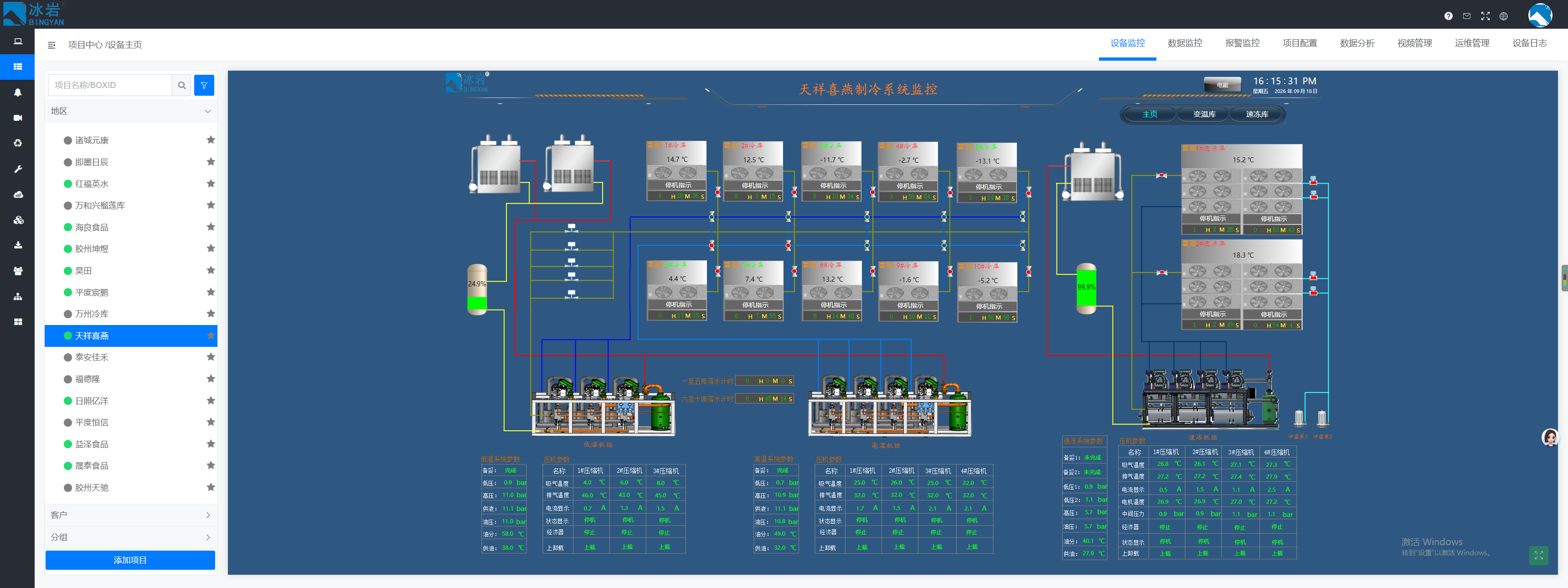

For remote management, we have developed a cloud-based monitoring platform supported by IoT communication modules. It enables real-time monitoring of key refrigeration system operating conditions, alarm notifications, and operational data recording and export. This gives operators greater visibility into system performance and helps identify abnormal conditions earlier, supporting more efficient operation and maintenance.

Need smarter refrigeration system management? Contact BingYan to discuss your monitoring, automation, and remote-management requirements.

We address energy efficiency throughout the refrigeration system rather than relying on a single component. The optimization process can include accurate cooling-load calculations, high-efficiency refrigeration units, optimized system architecture, low-resistance piping, intelligent control logic, and adaptive defrost strategies.

Depending on project requirements, waste-heat recovery can also be considered to make better use of available thermal energy. These measures help reduce unnecessary compressor operation, pressure losses, and defrost-related energy consumption, lowering the system’s long-term operating costs while maintaining stable refrigeration performance.

Looking to reduce the operating cost of your refrigeration system? Share your project requirements with BingYan, and our team can recommend energy-saving measures suited to your application.

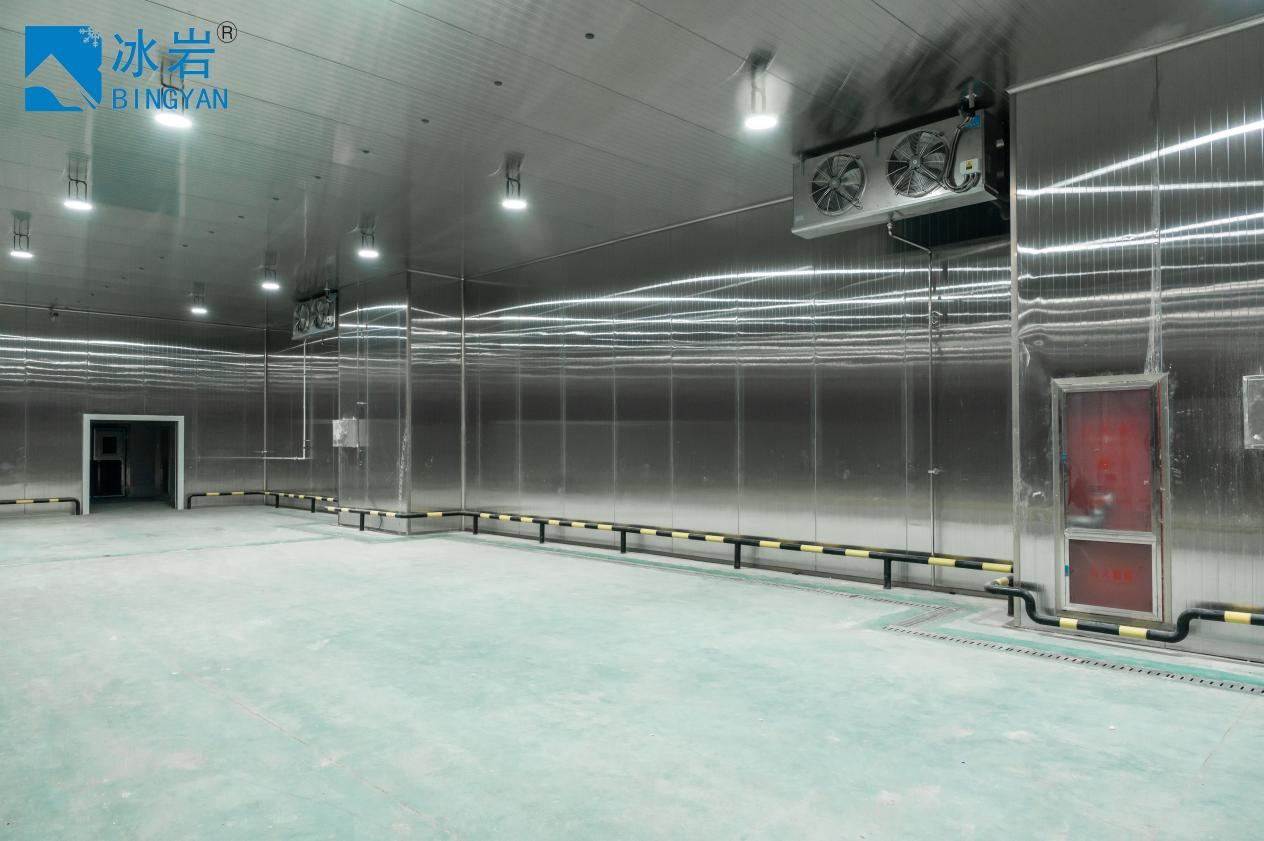

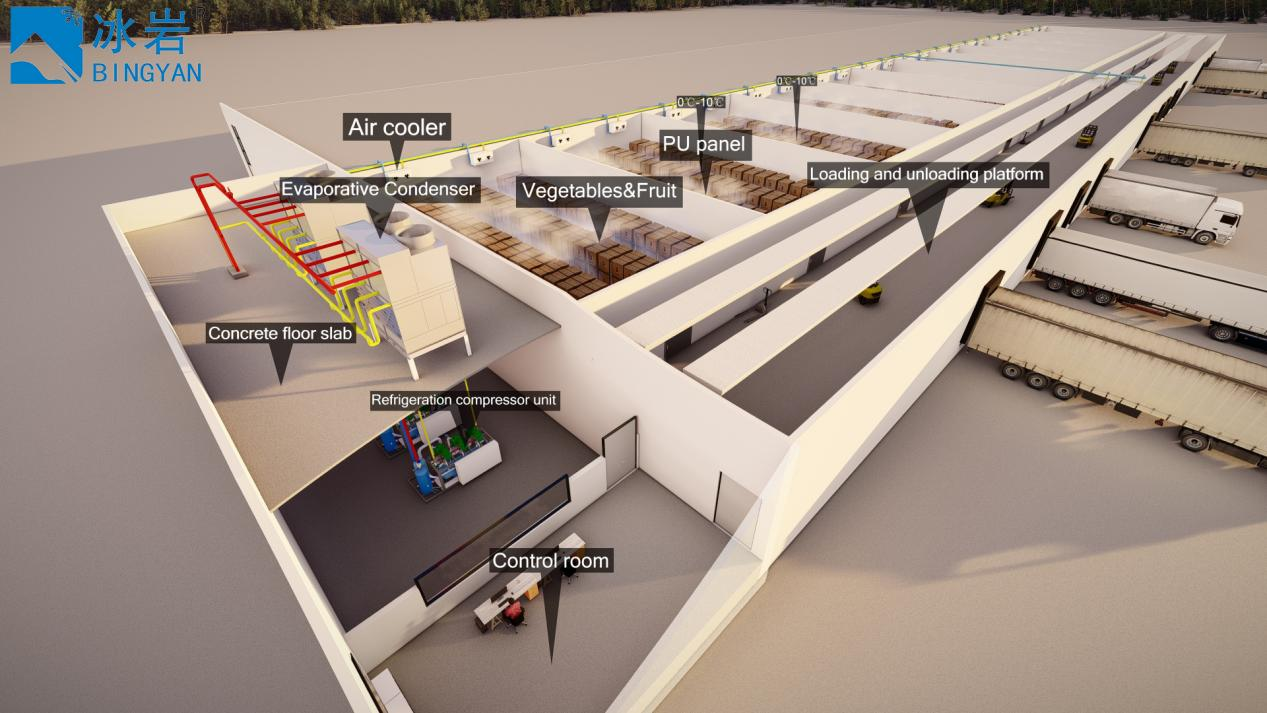

Yes. BingYan provides turnkey services covering the refrigeration scope of cold storage projects, from process and system design to complete equipment supply, installation guidance, commissioning, and handover. Our team coordinates equipment selection and system integration according to the project’s storage requirements, temperature range, site conditions, and operating needs.

For civil works outside the refrigeration scope, such as building structures and the overall building envelope, we can coordinate with qualified local partners when required. This approach allows customers to work with one technical partner for the refrigeration system while maintaining flexibility for local construction resources.

Planning a new cold storage project? Contact BingYan with your site conditions and refrigeration requirements, and our team can help develop a suitable turnkey refrigeration solution.
